Tires, Brakes, and Air Systems: The “Can’t-Fail” Trio

When you climb into the cab of a heavy truck, three systems are always on your side - or working against you if neglected: tires, brakes, and air systems. They are the “can’t-fail” trio because a problem in any one of them can trigger a chain reaction of risks. A weak tire becomes a blowout at highway speed. A brake issue evolves into fade on a mountain downgrade. A leaking air line silently erodes your stopping power until the low-pressure alarm screams at you.

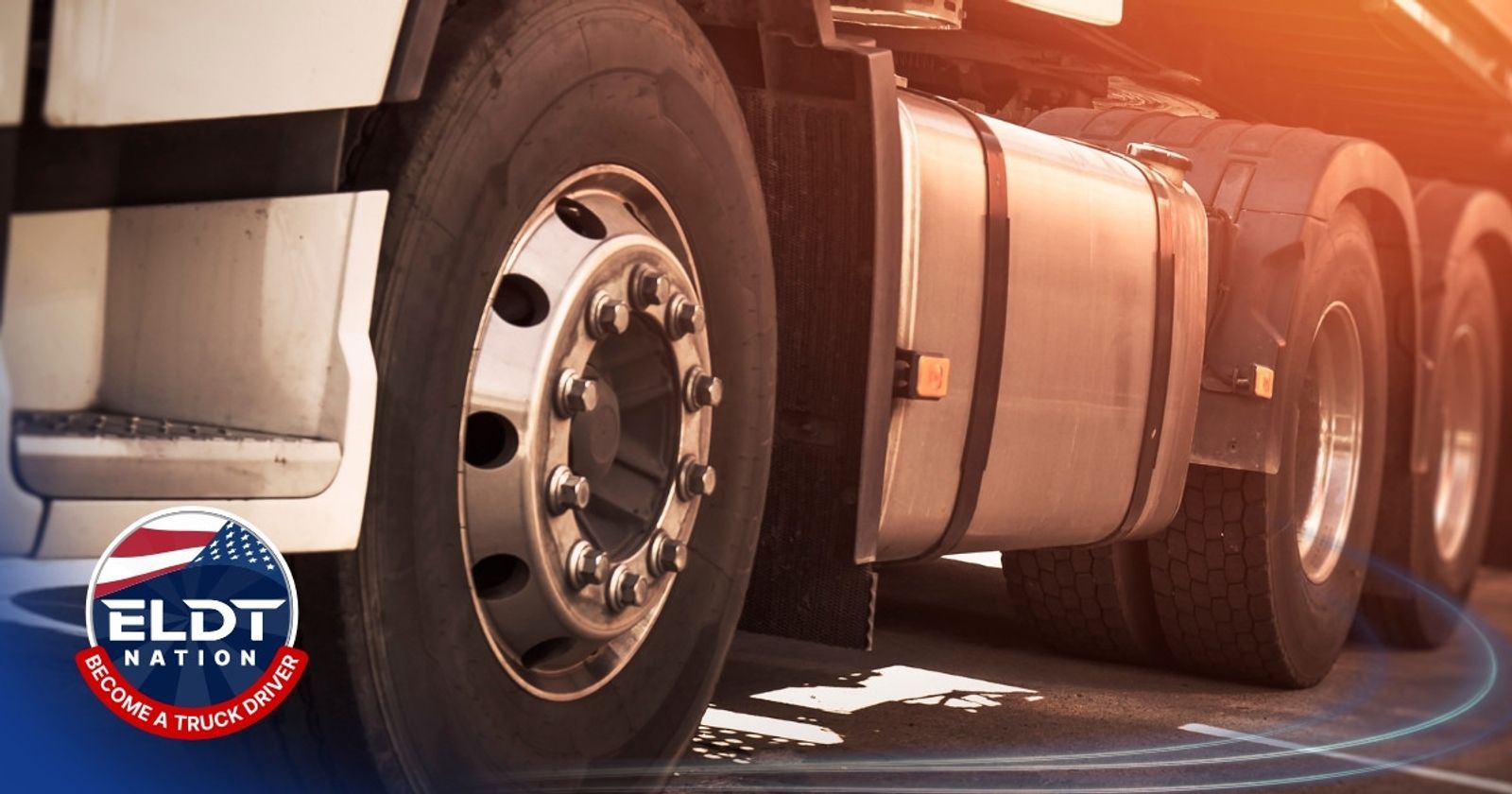

Tires – The First Line of Defense

Your tires connect 80,000 pounds of truck and cargo to the road. If they fail, everything else is academic. That’s why tires are always the first place to start when reviewing the “can’t-fail” trio.

Legal tread depth and compliance

For heavy goods vehicles (HGVs), the law is clear: you must maintain at least 1 mm of tread depth across the central three-quarters of the tire’s width, running around the entire circumference. That’s the absolute minimum to stay legal.

Passenger cars carry a slightly higher standard of 1.6 mm, but that doesn’t mean trucks can get away with less. In fact, trucks have more at stake because of their size and weight. Their massive tread footprint can clear water more effectively, but once the tread thins out, the stopping distance and aquaplaning risk multiply. A tractor-trailer riding on worn rubber is a disaster waiting to happen.

Keeping tread above minimums isn’t just about inspections - it’s about hydroplaning prevention. Tread grooves evacuate water from beneath the contact patch. Less tread = less evacuation = greater risk of losing grip on wet pavement.

Heat: the number one tire enemy

If there’s a single force that destroys more truck tires than anything else, it’s heat. Heat attacks from two directions:

• Internal heat: Every mile flexes the steel cords inside the tire. Think of a paperclip bent back and forth until it snaps. That flexing builds heat, weakens the cords, and creates what’s called a zipper effect, where the belts tear apart from each other.
• External heat: Summer road temps in parts of the U.S. routinely hit triple digits. Combine ambient heat with underinflation, and the casing begins to separate.

CCJ’s 10-44 segment underscored this point: “Heat is a tire’s number one enemy unless you don’t mind blowouts and all the expense that comes with it.” Sun exposure also accelerates ozone cracking, especially on sidewalls exposed year-round in southern states. Rotate duals to reduce long-term UV exposure on one side.

Air pressure and PSI swings

Air pressure is where most tire failures begin. The formula is simple:

• Under-inflation = excess flexing → heat buildup → blowouts.
• Over-inflation = reduced contact patch → center tread wear, harsher ride, but less catastrophic.

Ambient temperatures swing PSI levels dramatically. A tire set at 105 PSI on a cool morning can spike to 115 PSI by afternoon heat. Drivers must resist the urge to “bleed off” hot pressure; once the tire cools, that same tire may be dangerously underinflated.

Best practices:

• Always measure at cold temperatures, ideally pre-trip.
• Daily manual checks remain the gold standard, but TPMS (Tire Pressure Monitoring Systems) give real-time readings that prevent surprises.
• For fleets, load and inflation tables from manufacturers provide the most accurate baseline - one day you may be hauling 80,000 lbs, the next 30,000. Tire pressure must match the load.

Signs a tire should be pulled from service

Not every warning shows up on the tread. Some failures hide until it’s too late. Look for:

• Bulges or bubbles: Often the first sign of internal separation.
• Cracking near the bead or shoulder: Indicates aging or flex stress.
• Uneven wear patterns: Misalignment or dragging brakes often show here first.
• Valve stem leaks: Cheap to fix but often ignored. A missing or faulty valve cap is one of the most common sources of PSI loss.

Once you see signs of a zipper effect - steel belts letting go like snapped bridge cables - the tire is finished. Park it. Retreading or repair won’t save it.

Fuel economy and cost-per-mile impact

Tire health isn’t just about avoiding blowouts - it’s directly tied to your bottom line. Rolling resistance is the silent cost of underinflated tires.

• Even a 10 PSI drop across all 18 wheels can increase drag enough to burn extra gallons of fuel daily.
• Correct inflation reduces CO₂ emissions and improves cost-per-mile metrics.
• For fleets running hundreds of trucks, the difference between correct and sloppy inflation policies is measured in hundreds of thousands of dollars annually.

In short, the tire you maintain today is the profit margin you save tomorrow.

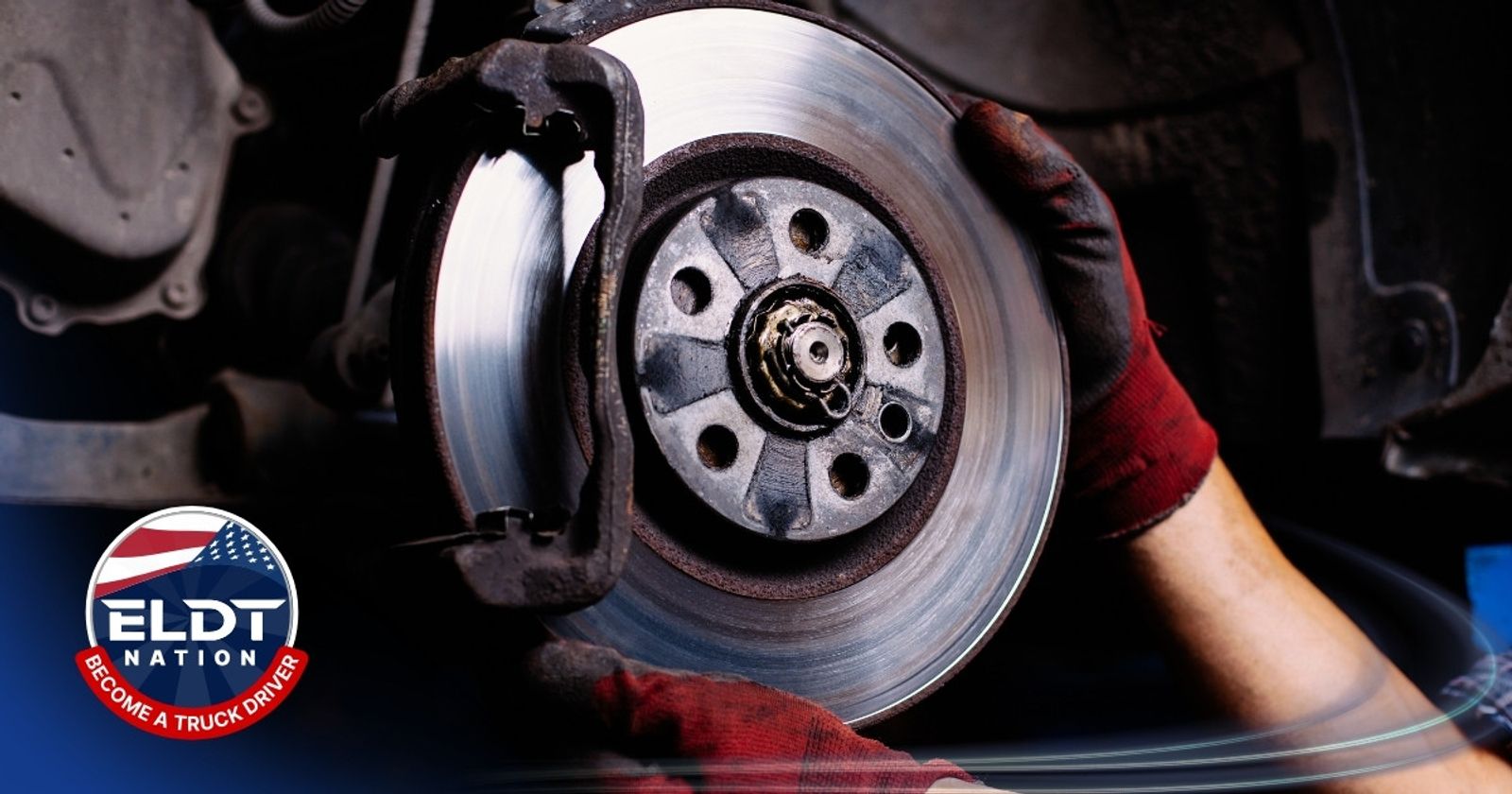

Brakes – The System That Must Never Fade

Your foundation brakes convert speed into heat - thousands of times per trip. When they cannot shed that heat fast enough, friction drops, parts deform, and stopping distances grow. “Brake fade” is the driver’s warning that wheel-ends are past their thermal limit. Knowing the types of fade, the early signals, and the right roadside saves can be the difference between a safe stop and a runaway.

Brake fade explained

Temporary (green) fade vs. chronic fade

• Temporary (green) fade
  • Occurs with new or freshly serviced linings/pads and rotors/drums that have not bedded in.
  • Resins and binders in fresh friction material outgas under heat, momentarily reducing friction.
  • Typically self-resolves after the components properly bed through a controlled heat cycle. Good technique (firm, clean stops - not riding the brakes) accelerates this process.
• Chronic fade
  • Caused by overheating wheel-ends over repeated cycles (long grades, heavy loads, dragging brakes).
  • Produces lasting changes: glazing of pads/linings and rotors/drums, drum expansion, rotor hot spots, and loss of friction coefficient.
  • Does not fix itself. Expect persistently longer stops until parts are serviced or replaced.

How overheating ties it all together

• Heat is the root cause. As temperatures rise beyond the designed operating window, friction materials lose bite, drums expand away from shoes, rotors develop hot spots, and the whole system delivers less torque for the same pedal application.
• In hydraulic systems (medium-duty, light vehicles), high heat can boil fluid (which absorbs moisture over time), creating vapor that compresses - leading to a soft/spongy pedal.
• In air-brake systems (typical for heavy tractors/trailers), fade presents as reduced deceleration for the same application pressure, longer pushrod travel (more stroke), and a tendency to “need more brake” to achieve the same slowing effect.

Early warning signs

Reduced stopping power and longer distances

• You’re pressing the pedal (or increasing application pressure) more than usual to get the same deceleration, especially after sustained braking (traffic on a descent, repeated stops).

Changes in pedal feel and feedback

• Hydraulic systems: pedal becomes soft or spongy (fluid boiling/vapor), or pulsates (rotor thickness variation or hot spots).
• Air-brake systems: the effort and stroke increase to get the same stop; you may feel delayed response or “less grab” even with normal system air pressure.

Heat, smell, smoke

• Acrid, sharp burning odor after braking hard or long.
• Wisping smoke from one wheel indicates a localized problem (dragging brake, seized caliper/slider, misadjusted slack).
• Smoke from multiple wheels suggests system-level overheating (technique or load/grade mismatch).

Indicators and alerts

• Brake warning lamps (where fitted) may illuminate for hydraulic fluid issues, ABS faults, or parking brake problems.
• For air-brake rigs, watch service/application pressure vs. deceleration; if you’re using more brake for less effect, treat it as a fade warning even without a lamp.

Causes of brake overheating

Heavy downhill use (mountain grades)

• Long or steep descents generate continuous heat. If you rely primarily on service brakes instead of engine braking/retarder, components will soak heat faster than they can shed it, leading to fade.

Poor-quality friction and glazed surfaces

• Low-grade pads/linings overheat sooner, glaze, and shed material unevenly.
• Glazing (a hard, shiny surface) severely reduces friction and often causes squeal plus longer stops.

Overloaded trucks and dragging brakes

• Excess GVW/GCW elevates brake torque demand at every stop.
• Dragging: seized calipers/sliders, stuck or maladjusted automatic slack adjusters, weak return springs, or contaminated linings keep brakes in contact, generating heat even off-pedal.

Moisture and fluid boiling (hydraulic systems)

• Brake fluid is hygroscopic (absorbs water). Water lowers the fluid’s boiling point. Under heavy braking, fluid can boil, forming compressible vapor pockets that cause a soft pedal and major loss of braking torque.

Roadside saves and safe practices

The immediate response when brakes smell hot

1. Exit or pull over safely at the first safe opportunity. Use a turnout or brake check area if on a grade.
2. Secure the vehicle (parking brake as appropriate for the system and situation; chock wheels if needed).
3. Visual and smell check at a distance first. Look for smoke at specific wheel-ends.
4. Do not spray water on hot brakes. Rapid cooling can warp rotors, crack drums, and shatter friction.

Cooling strategy that works

• Airflow and time are your allies. Open wheel covers or fairings if designed for service access. Keep people clear of hot components.
• If you must move to a safer spot, do so very slowly, using the lowest gear and engine braking, and avoid any unnecessary service brake applications.

Use the driveline to share the load

• Before any descent, select a gear that allows the engine brake/retarder to hold speed with minimal service brake input.
• On the descent, apply snub braking (firm, brief applications to reduce speed by 5–10 mph, then release to let brakes cool) rather than dragging the pedal continuously.

Schedule inspections after a heat event

• Wheel-end that smoked: inspect ASAP for glazing, hot spotting, cracked linings, discolored rotors/drums, cooked seals/bearings, and caliper/slider freedom (hydraulic) or cam/diaphragm/slack adjuster function (air).
• Fluid service (hydraulic): if pedal went soft, plan a fluid test and flush; consider a higher-spec fluid if duty demands it.
• Air-brake check: verify automatic slack adjusters, pushrod stroke, return springs, and that no air lines were heat-damaged.

Preventative maintenance and upgrades

Specify the right friction and hardware for the route

• High-quality pads/linings with fade-resistant formulations for fleets in mountain regions or heavy stop-and-go lanes.
• Vented/fin-optimized rotors or drums with proper cooling characteristics improve heat rejection.
• Replace heat-checked rotors/drums; resurface only within manufacturer limits and when it preserves thermal capacity.

Fluids, adjustments, and setup (match to duty)

• Hydraulic systems: use a high-boiling-point brake fluid appropriate for your platform and service interval. Replace fluid on schedule; “wet” fluid invites fade.
• Air-brake systems: ensure automatic slack adjusters are functioning; check pushrod stroke and cam rotation. Misadjustment masquerades as fade by reducing available brake torque.
• Verify wheel-end seals and bearings. Cooked seals leak; contaminated linings lose friction and overheat again.

Inspection cadence that actually prevents fade

• Pre-trip: look, listen, smell. Confirm no obvious drag, no warning lamps, no abnormal heat scents after short movements.
• At-grade tops: use designated brake check areas; verify no burning smell, no smoke, and that brakes are cool enough to begin a descent.
• Post-event (after any overheating): pull the wheel if necessary. Replace glazed or heat-damaged friction; don’t send it back out to “wear in.”
• Programmatic checks: rotor/drum thickness, runout, shoe/pad thickness, hardware freedom, and ABS sensor/toner ring condition.

Technique and training

• Teach and enforce snub braking, proper gear selection, and continuous use of engine brake/retarder on grades.
• Prohibit riding the brakes. Short, firm applications with cooling intervals outperform light, continuous drag every time.
• Incorporate mountain route briefings: grade %, length, safe speeds, locations of runaway ramps and brake-check pullouts.

Air Systems – The Invisible Lifeline

Your air system is the unseen muscle behind every stop you make. If it cannot build, store, and deliver pressurized air on demand, even perfectly adjusted foundation brakes cannot do their job. Mastering compressor performance, governor settings, leak testing, and winterization is the difference between safe control and a low-air emergency.

Compressor and governor checks

Understanding cut-in/cut-out (typical ranges and what they mean)

• Cut-out pressure (compressor stops pumping): commonly 120–135 psi for modern tractors.
• Cut-in pressure (compressor resumes pumping): typically 20–25 psi below cut-out (for example, cut-out at 130 psi → cut-in around 105–110 psi).
• Some legacy or specialty configurations may operate slightly lower or higher, but actual cut-out must remain below 145 psi and cut-in above ~80 psi for safe operation under widely used standards.

These two points define your normal operating band. Knowing your vehicle’s band helps you spot drift (e.g., cut-out creeping higher or cut-in falling lower), which signals governor or control issues.

Build-up rate (the quick health check you should do regularly)

A healthy compressor must restore the system to the normal range quickly. A widely used benchmark is:

• From 85 psi to 100 psi in ≤ 2 minutes with engine at 600–900 rpm and trailer supply closed (if applicable).
• If it takes longer, suspect compressor wear, intake/exhaust restrictions, air dryer restriction, major leaks, or governor faults.

Signs your compressor or control is defective

• Slow build-up despite adequate rpm and no obvious leaks.
• Cut-out above 135–145 psi (dangerous overpressure; risks component damage).
• Cut-in below ~80 psi (operating too low before recovery; risks entering low-air condition).
• Frequent short cycles (rapid cut-in/out) indicating restricted lines, saturated dryer, or faulty unloader/governor.
• No audible dryer purge at cut-out on vehicles equipped with an air dryer (or purge extremely weak/constant weep).

Action: Document actual cut-in/cut-out, measure build-up time, and report deviations immediately. Small shifts today become roadside failures tomorrow.

Leak checks and air-loss tests

Even a high-output compressor cannot keep up with persistent leaks. System integrity is verified with a static leak test and, where required, a service-brake applied leak test.

Acceptable loss rates (rule-of-thumb)

• Tractor/straight truck: ≤ 3 psi per minute
• Tractor + trailer: ≤ 4 psi per minute
• Tractor + two (or more) trailers: ≤ 6 psi per minute

Exceeding these values indicates a defective air system that must be repaired before operation.

How to test (clear, repeatable pre-trip method)

1. Secure the vehicle: level ground, wheels chocked.
2. Charge the system to normal operating pressure; verify cut-out.
3. Engine off, ignition on (gauges live).
4. Release spring/parking brakes so chambers are on air (if safe and permitted).
5. Fully apply the service brake pedal and hold.
6. Ignore the initial pressure drop when you first apply the pedal (that’s chamber fill).
7. Time one minute and note the pressure loss on the gauges.
8. Compare to the thresholds above.

If the loss exceeds limits, locate and fix leaks before you roll.

Where leaks hide (and the cheap parts that fail most)

• Gladhands and seals (red emergency / blue service): hardened, cracked, or missing rubber grommets leak continuously.
• Service line and emergency line couplers/fittings: quick-connects and push-to-connect fittings loosen or crack.
• Tank drain valves: corroded petcocks stick slightly open; automatic drains can fail.
• Protection, relay, QR, and SR valves: O-rings age; dirt and desiccant contamination score sealing surfaces.
• Chamber diaphragms and hoses: age, heat, and road debris cause pinholes or splits.
• Manifold and governor connections: loose ferrules, T-fittings, or thread seal failures.

Start with gladhands, seals, and fittings - they are cheap, fast to replace, and disproportionately responsible for chronic leaks.

Low-air warnings – what to do now

Warning threshold and what it means

Most low-air warning systems activate around 55–60 psi. This is not a suggestion; it is a critical threshold telling you reserve capacity is nearly gone and spring brakes may soon apply automatically on certain configurations.

Correct roadside protocol

• Do not “limp along.” Pull over immediately at the first safe location.
• Secure the vehicle: parking brakes as appropriate; chock wheels.
• Identify the cause: listen for leaks, look for a blown hose, a separated coupling, or a frozen/blocked line in winter conditions.
• Do not resume travel until the cause is corrected and the system safely rebuilds pressure above cut-in, with stable hold at cut-out and no rapid decay.

Operating with a defective low-pressure warning device or continuing to drive under active low-air warning is prohibited in many jurisdictions and is an extreme safety hazard. Treat any low-air event as an immediate out-of-service condition until resolved.

Winter air brake survival

Cold weather introduces moisture management problems that can disable brakes without warning.

Moisture: how it forms and why it freezes

Compressed air always carries some water vapor. If not removed, that moisture condenses in tanks, lines, and valves. In freezing temperatures, ice crystals form and:

• Block valve passages, preventing apply or release.
• Trap pressure, giving falsely “normal” gauge readings while the downstream circuit is starved.
• Seize relay or protection valves, causing asymmetrical braking or complete loss in an axle/group.

Draining strategy: automatic vs. manual

• Automatic drain valves: purge moisture during operation but must be inspected. Stuck or weak drains give a false sense of security.
• Manual drains: require daily purging in winter. Always drain the supply (wet) tank first, then the secondary tanks. Observe the discharge:
  • Water beyond a light mist is a red flag.
  • Oil indicates compressor carryover or dryer failure and must be addressed.

Why alcohol “quick fixes” backfire

Pouring alcohol into air systems is a last-resort, emergency-side deicer for very specific, manufacturer-approved products and procedures - and even then, it often masks root problems. Risks include:

• Seal and diaphragm damage: alcohols can attack rubbers and plastics, degrading O-rings, diaphragms, and valve seals.
• Reservoir and adhesive failures: certain plastics/acrylics and bonding agents are softened or dissolved by alcohol.
• Explosion/combustion hazard: introducing heat (torches) near alcohol-contaminated tanks or lines can cause violent rupture.

The real fix is moisture control, not chemical crutches.

Air dryers and desiccant: your first line of defense

• Ensure the vehicle has a functioning air dryer; listen for a healthy purge at cut-out.
• Service intervals matter: replace desiccant cartridges annually (or per severe-duty schedule) ahead of winter.
• Use high-quality cartridges; cheap desiccant can shed beads/dust, contaminating valves system-wide and creating chronic failures.
• Inspect heater circuits on dryers (where equipped) to prevent freeze-ups at the dryer itself.
• After any major dryer failure, plan for system flushing and targeted valve replacements - desiccant contamination travels everywhere.

Hidden dangers and modern safety nets

False confidence from gauges

Gauges show tank pressure, not whether air can flow past a frozen restriction or collapsed line to the chambers. You can see 110–120 psi on the dash yet have no delivery downstream. A quick functional check:

• With the engine idling, fan the service brakes to near cut-in, confirm low-air buzzer behavior at the correct threshold, then verify recovery to cut-out and a clean dryer purge. If the system doesn’t respond normally, do not depart.

Dual systems and ABS: backups, not immunity

• Dual-circuit air systems provide redundancy (primary and secondary). They are designed so that one circuit can retain braking if the other fails. That is backup, not a license to run with known defects.
• ABS helps maintain control and directional stability on slippery surfaces, but it does not shorten stopping distance on dry pavement and cannot compensate for overheated, glazed friction or starved air supply.
• Automatic slack adjusters help maintain stroke but cannot overcome seized cam bushings, broken return springs, or cooked seals.

Seasonal Prep: Heat, Cold, and Mountain Weeks

Every professional driver knows that weather and terrain test the “can’t-fail” trio harder than any inspection or checklist. Seasonal prep isn’t optional - it’s a survival strategy. Heat, cold, and mountains each stress tires, brakes, and air systems in unique ways, and preparation ensures you stay in control when conditions turn against you.

Summer heat checks

Tire inflation before rolling

Heat magnifies any weakness in your tires. A tire that is underinflated by just 10 PSI at departure can reach catastrophic flex temperatures after only a few miles of highway travel. Always check cold inflation pressures before rolling - not after the sun has baked the asphalt or the truck has run for hours. Hot readings will mislead you into “bleeding off” pressure that you actually need when the tire cools again.

Sidewall management and ozone cracking

UV radiation and ozone in the atmosphere attack sidewalls, especially on parked equipment or trailers that sit in lots for long stretches. Rotating duals periodically prevents one tire from sitting permanently in the sun. Inspections must include sidewall close-ups: look for fine cracks near the bead and lettering. Once ozone cracking penetrates the rubber, the structure weakens, and blowouts are imminent.

TPMS as summer insurance

Tire Pressure Monitoring Systems (TPMS) give real-time alerts when heat and underinflation combine. In summer, where road surface temps exceed 120°F, TPMS often detects a runaway tire before the driver feels it in the steering wheel. For fleets, TPMS data across units can flag chronic problem tires, valve stem issues, or axle-specific heat patterns before they become roadside emergencies.

Winter survival routines

Moisture management in tanks

Cold weather transforms condensation into ice. Ice plugs in valves and lines can leave brakes applied, delayed, or completely inoperative. Daily manual draining of tanks - starting with the wet (supply) tank - remains the most reliable defense. Automatic drains help, but they require their own inspections and are no substitute for hands-on checks in subzero climates.

Approved de-icers only in emergencies

Approved liquid de-icers designed for air brake systems are for the emergency side only. They should be used sparingly and only when absolutely necessary to free a frozen valve. Applying them system-wide introduces solvents that degrade seals and rubber parts. A professional driver treats de-icers as a roadside save, not a maintenance plan.

Why alcohol use is outdated and dangerous

Old-school drivers sometimes poured alcohol into tanks as a freeze solution. On modern equipment, this practice is destructive. Alcohol dries out and cracks rubber diaphragms, corrodes metals, and in worst cases has caused violent ruptures when vapors ignited. What seems like a “quick fix” in the cold often ends in system-wide valve replacement or worse.

Mountain routes

Gear selection and engine braking strategy

On a steep grade, your first defense is the drivetrain, not the brake pedal. Always select a gear before the downgrade that allows the engine brake or retarder to hold speed with only light, intermittent brake applications. Waiting until halfway down to select the right gear is already too late - by then brakes are hot and fading.

Brake checks at grade stations

Many mountain corridors require brake checks at designated pullouts. These are not suggestions - they’re opportunities to catch overheated wheel-ends or low pressure before committing to a descent. Smart drivers use this pause to inspect for burning smells, smoke wisps, or unusual heat by hand proximity (never by touch).

Pull-offs for overheating tires or smoking brakes

If smoke curls from a wheel or you smell burning linings mid-descent, you must take the next pull-off or runaway ramp. Continuing is gambling with physics: downhill weight, gravity, and overheated systems do not give second chances. Pull-offs exist to save lives - use them.

Pass Our Online Course Now and Start Your Journey as a Truck Driver

At ELDT Nation, we don’t just prepare you for the CDL exam - we prepare you for the road, with training rooted in real-world safety principles like the “can’t-fail” trio.
